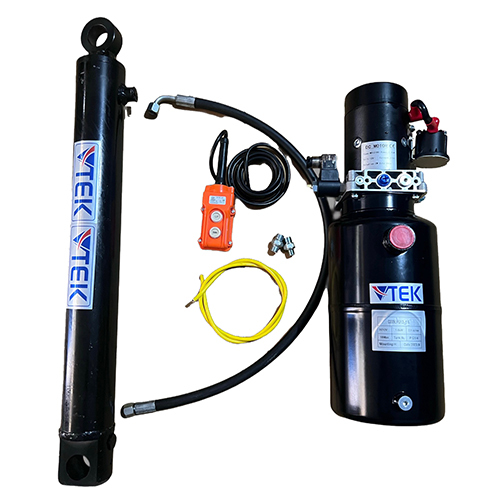

Mini Hydraulic Power Pack

• Voltage rating: 12 & 24 VDC
• Pump option: 0.7 cc/rev, 1.0 cc/rev, 1.5 cc/rev, 1.9 cc/rev, 2.3 cc/rev, 3.0 cc/rev, 4.0 cc/ rev, 5.1 cc/rev, 6.3 cc/rev, 7.0 cc/rev
• Weight: A typical D.C. power pack with 2.4-liter tank weighs approx. 18.2 kg when filled with oil. For larger tanks add 1 kg for each additional liter of capacity
• Hydraulic oil: Mineral oil with a viscosity range of 6 to 450 cSt at stabilized working temperature
• Working pressure: Typical working pressure is normally around 180 bar although pressure up to 250 bar is attainable (Special pressure settings are available on request)

Applications:

• Pallet Lifters/Trucks
• Hydraulic Hoppers
• Car Carries Trucks
• Compact Hydraulic Machines
• Battery Operated Trolleys
• Platforms
• Lifts
• Broadcasting Vans
